API Key Authentication

API Key token authentication sends a token in either a header or query parameter of each API request.

E.g., Headers: X-StorageApi-Token:your_token

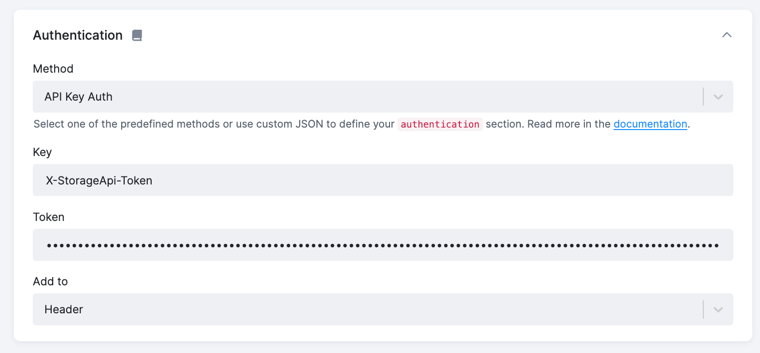

This method is available through UI. You can select the Api Key Auth method and fill in the token.

Configuration parameters

• Key - arbitrary name of the header or query parameter key, e.g., X-StorageApi-Token
• Token - the actual token value
• Add to - where to add the token, either to the headers or query parameters

JSON

In the underlying JSON, the API Key is implemented as follows:

Place your token into the config.#__AUTH_TOKEN parameter. The Authorization header is then constructed using the concat function.

Header section

{
    "api": {
        ...,
        "http": {
      "http": {
          "headers": {
            "X-StorageApi-Token": {
              "attr": "#__AUTH_TOKEN"
            }
          }
        }
      }
    },
    "config": {
       "#__AUTH_TOKEN": "secret",
       "jobs": [...]
    }
}

Query section

{
    "api": {
        ...,
        "http": {
      "http": {
          "params": {
            "X-StorageApi-Token": {
              "attr": "#__AUTH_TOKEN"
            }
          }
        }
      }
    },
    "config": {
       "#__AUTH_TOKEN": "secret",
       "jobs": [...]
    }
}
